Tripp Lite BC600R 600VA Desktop/Surface/Wall Mountable UPS, Desktop/Surface/Wall Mountable, 8 Hour Recharge, 1.50 Minute Stand-by, 120 V AC Input, 120 V AC Output, Single Phase, Pulse-width Modulated Sine Wave
Click image to zoom in
-
Free Shipping
-
Secure Shopping
-
NET-30 Terms
-
Made In USA
Product Details
Product Highlights
- Reliable battery backup that provides AC power protection against overvoltages, blackouts, brownouts, surges and line noise
- 300-watt design protects home/office computing, point-of-sale equipment and networking in retail, kiosks, foodservice and light industrial environments
- Easy to set up - just plug into a properly grounded wall outlet, press the power button and connect equipment with the UPS outlets
- Switches to battery power during short blackouts or brownouts so you have time to save data and complete a safe shutdown
- Incoming utility power keeps the battery fully charged so backup power is always available
Product Documents
600VA battery backup for PCs and retail point-of-sale application is a standby UPS that provides reliable battery backup and AC power protection against blackouts, brownouts, overvoltages, surges and line noise. 300-watt, 120-volt UPS protects home/office computing, networking and point-of-sale equipment in retail, kiosks, foodservice and light industrial environments. It's easy to set up in minutes. Just plug it into a properly grounded wall outlet. Press the power button and connect equipment to the UPS outlets. Input power cable, power button and status LEDs are on the same side for easy access. UPS switches to battery power to keep connected equipment running during short blackouts and brownouts, giving you enough time to save data and complete a safe shutdown in case of a longer outage. Incoming utility power keeps the replaceable VRLA battery fully charged so backup power is always available. It restarts automatically once power is restored.
Product Specifications
| Dimensions / Specifications | |
|---|---|
| Unit of Measure | EA |
| Item Dimensions | 9.00 in. x 4.80 in. x 12.10 in. (W x H x D) |
| Item Weight | 4.900 lbs |
| Carton Pack Quantity | 3 EA |
| This item is sold by the EA | |
| Shipping Info | |
|---|---|
| Can Ship via UPS? | Yes |
| Can Ship via Air Carrier? | Yes |
| Hazmat restrictions? | No |
| Additional Information | |
|---|---|
| Has Energy Star Rating? | Yes |
| Considered Green (less environmental impact)? | Yes |
| Made of Some or All Recycled Materials? | No |
| Item Specifications | |
|---|---|
| Manufacturer | Eaton Corporation |
| Manufacturer Part Number | BC600R |
| Product Model | BC600R |
| Product Name | BC600R 600VA Desktop/Surface/Wall Mountable UPS |
| Packaged Quantity | 1 Each |
| Product Type | Standby UPS |
| Plug/Connector Type | NEMA 5-15P |
| Receptacle Type | NEMA 5-15R |
| Receptacle Detail | 4 x NEMA 5-15R |
| Number of Battery & Surge Outlets | 4 |
| Cord Length | 5 ft |
| Transfer Time | 10 ms |
| EMI/RFI Noise Filter | Yes |
| Phase | Single Phase |
| Efficiency Detail | 97% (AC Mode) |
| Application/Usage | POS |
| Application/Usage | Network |
| Application/Usage | Retail |
| Application/Usage | Kiosk |
| Application/Usage | Industrial |
| Application/Usage | Food Service |
| Application/Usage | Home Network |
| Application/Usage | Wireless Access Point |
| Application/Usage | Desktop |
| Application/Usage | Computer Peripheral |
| Application/Usage | Home/Office |
| Application/Usage | Hospital |
| Features | Audible Alarm |
| Features | Cold Start Function |
| Features | Green Energy Saving |
| Load Capacity (VA) | 600 VA |
| Load Capacity (Watt) | 300 W |
| Input Voltage | 120 V AC |
| Input Current | 5 A |
| Output Voltage | 120 V AC |
| Input Frequency | 60 Hz |
| Output Frequency | 60 Hz |
| Waveform Type | Pulse-width Modulated Sine Wave |
| Surge Energy Rating | 190 J |
| Circuit Breaker | Yes |
| Output Power Factor | 0.5 |
| Status Indicators | LED Indicators: Low Battery or Fault Condition, Power and Line/battery Mode Status |
| DC System Voltage | 12 V DC |
| Battery Characteristics | Valve-regulated |
| Battery Chemistry | Lead Acid |

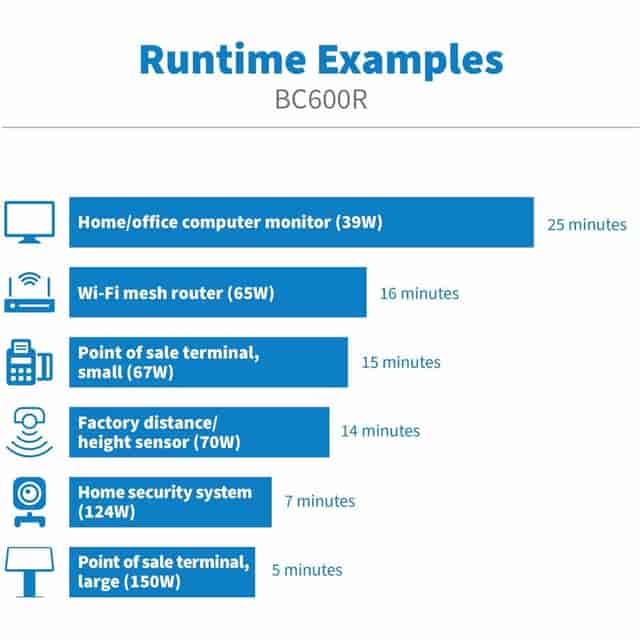

| Backup/Run Time (Full Load) | 1.50 Minute |
| Backup/Run Time (Half Load) | 5 Minute |
| Typical Battery Recharge Time | 8 Hour |
| Replaceable Battery | Yes |
| Minimum Operating Temperature | 32°F (0°C) |
| Maximum Operating Temperature | 122°F (50°C) |
| Storage Temperature | 5°F (-15°C) - 122°F (50°C) |
| Maximum Operating Elevation | 6561.68 ft |
| Sound Emission | 40 dB |

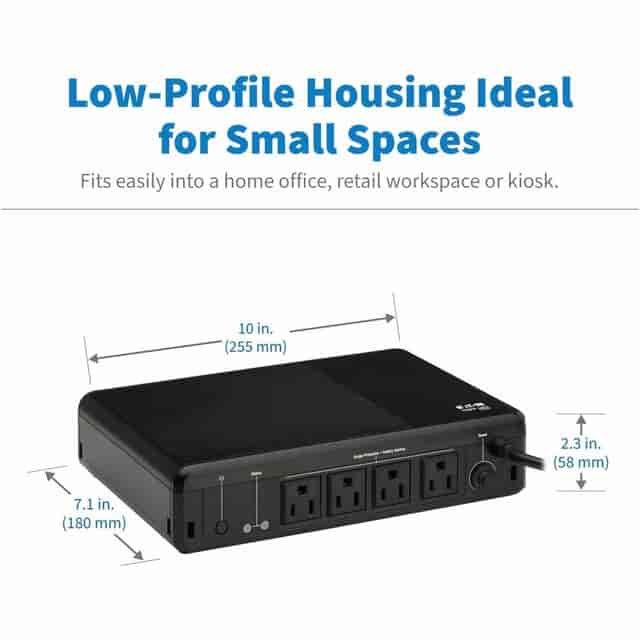

| Height | 2.3" |
| Width | 10" |
| Depth | 7.1" |
| Form Factor | Desktop/Surface/Wall Mountable |
| Weight (Approximate) | 4.41 lb |
| Package Contents | BC600R 600VA Desktop/Surface/Wall Mountable UPS, 4 x M4 x 12 mm Screws, 4 x M4 x 20 mm Screws, Quick Start Guide |
| Certifications & Standards | CAN/CSA-C22.2 No. 107.3, NOM, ICES, UL 1778 |
| Energy Star | Yes |
| Country of Origin | Vietnam |
| Environmentally Friendly | Yes |
| Environmental Compliance | Restriction of Hazardous Substances (RoHS) |
| Limited Warranty | 2 Year |
| Manufacturer Info | |
|---|---|
| Brand | Tripp Lite by Eaton |
| Manufacturer SKU | BC600R |
| Retail GTIN (UPC) | |
| Country of Origin | VN |
| UNSPSC Number | |
| Product ID | 10000239 |
